Product Description
The PV-ANT1725WB is one of our more sophisticated directional signal booster antennas in use today. This unique multi-band directional antenna covers a wide multi-range spectrum and can be used for cellular frequencies including North American standard 850 and 1900 MHz bands. The main benefit of the PV-ANT1725WB is its ability to focus the signal in one direction, leading to better gain figures. This antenna is designed for use on stationary objects such as houses or buildings, but can be attached directly to a device (wifi router, signal booster, etc) with some type of cable converter or adapter.
Electrical Features:
- Frequency: 806-960 / 1710-2500 MHz
- Gain: 9 dBi
- VSWR: <1.5:1
- Polarization: Horizontal Or Vertical
- Horizontal Beamwidth : 65°

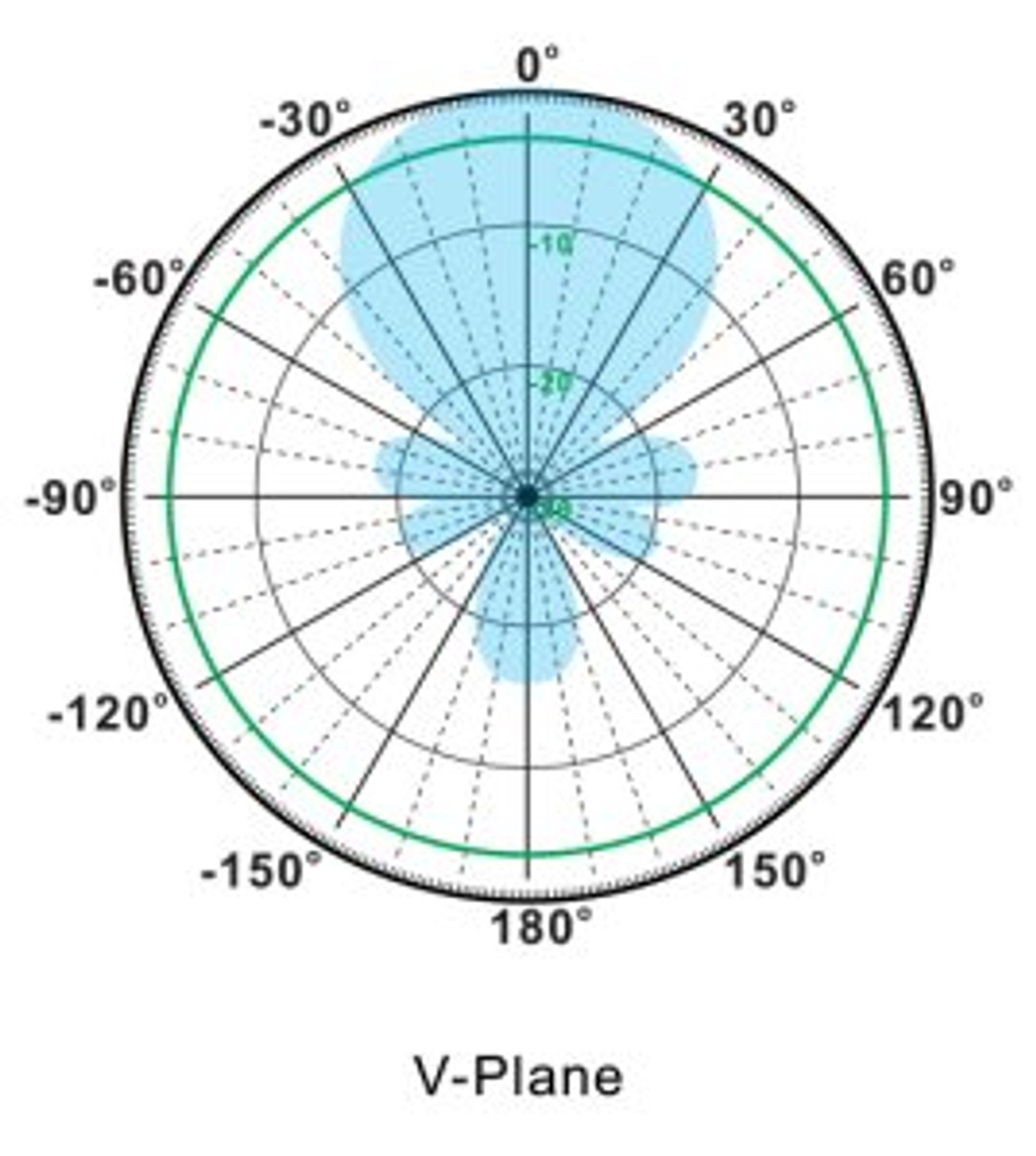

- Vertical Beamwidth: 55°
- Nominal Impedance: 50 Ohms
- F/B Ratio: >14 dB
- Max Input Power: 100 W
- Lightning Protection: DC Ground
Mechanical Features:
- Connector: N Female
- Dimension: (L x W x H) 11.81 x 8.27 x 2.56 in
- Weight: 1.76lb
- Cable Length: 11.81in
- Reflector Material: Aluminum Alloy
- Radome Material: Weatherproof ABS
- Mounting Method: Mast
- Mast Size: Ø40-Ø50mm
- Rated Wind Velocity: 210km/h
- Operating Temperature: -40~+65℃
